    • Modular Jack Pinning Diagram

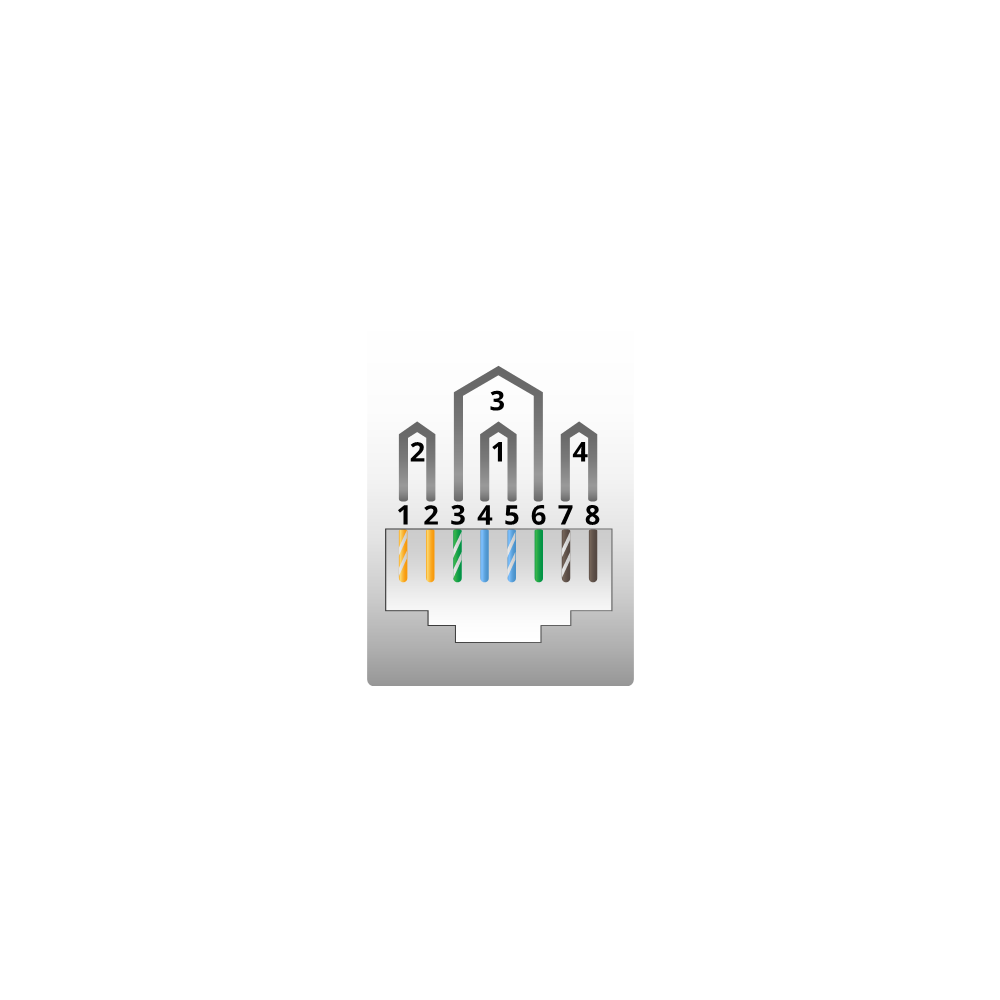

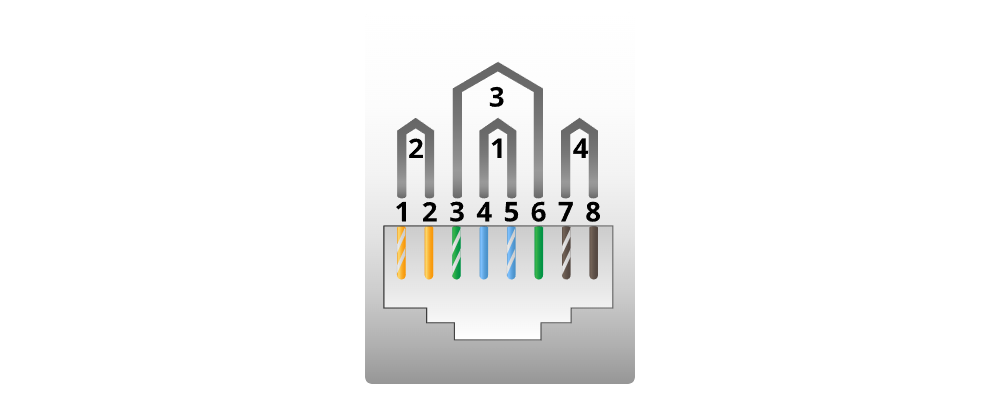

    Below is an example of a modular jack pinning diagram showing a Category 5 586A 8x8 modular jack.
