    Star Network Topology

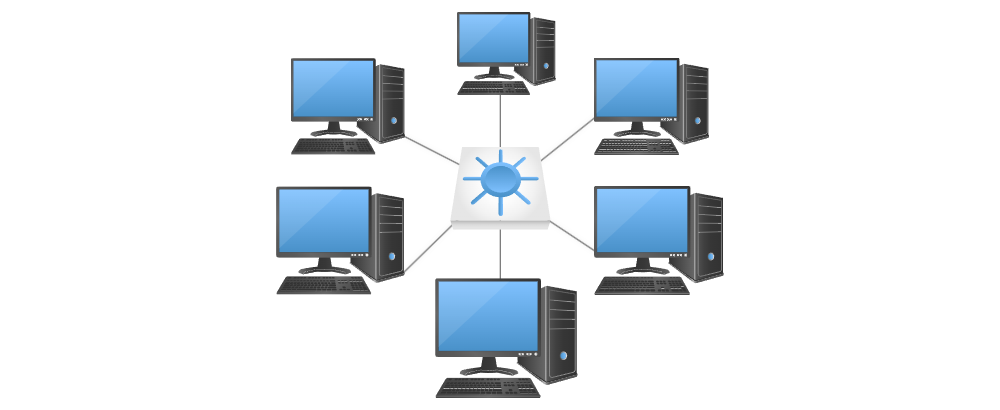

    This is an example of a star network topology. This star configuration is the most common network setup where every node connects to a central device. A star network allows for centralized network management and easy addition of new nodes.
