What is an Activity Diagram?
An activity diagram visually presents a series of actions or flow of control in a system similar to a flowchart or a data flow diagram. Activity diagrams are often used in business process modeling. They can also describe the steps in a use case diagram.
Activities modeled can be sequential and concurrent. In both cases an activity diagram will have a beginning (an initial state) and an end (a final state).
In between there are ways to depict activities, flows, decisions, guards, merge and and time events and more. Learn about activity diagram symbols below:
Basic Activity Diagram Notations and Symbols
Initial State or Start Point

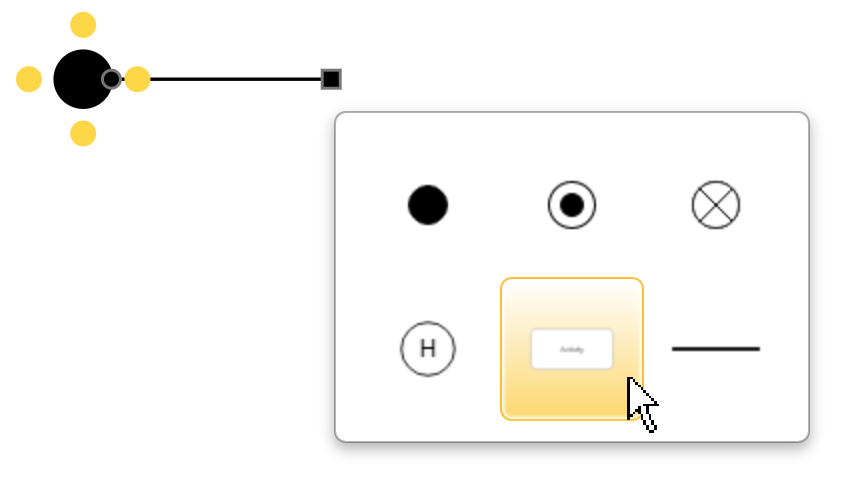

A small filled circle followed by an arrow represents the initial action state or the start point for any activity diagram. For activity diagram using swimlanes, make sure the start point is placed in the top left corner of the first column.
Activity or Action State

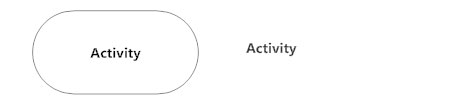

An action state represents the non-interruptible action of objects. You can draw an action state in SmartDraw using a rectangle with rounded corners.
Action flows, also called edges and paths, illustrate the transitions from one action state to another. They are usually drawn with an arrowed line.

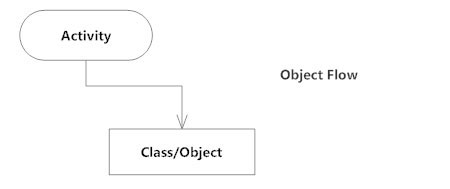

Object flow refers to the creation and modification of objects by activities. An object flow arrow from an action to an object means that the action creates or influences the object. An object flow arrow from an object to an action indicates that the action state uses the object.
Decisions and Branching
A diamond represents a decision with alternate paths. When an activity requires a decision prior to moving on to the next activity, add a diamond between the two activities. The outgoing alternates should be labeled with a condition or guard expression. You can also label one of the paths "else."

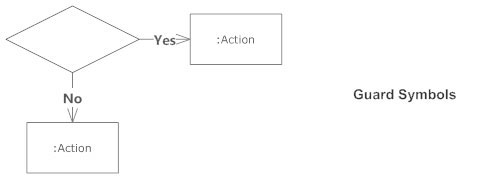

In UML, guards are a statement written next to a decision diamond that must be true before moving next to the next activity. These are not essential, but are useful when a specific answer, such as "Yes, three labels are printed," is needed before moving forward.

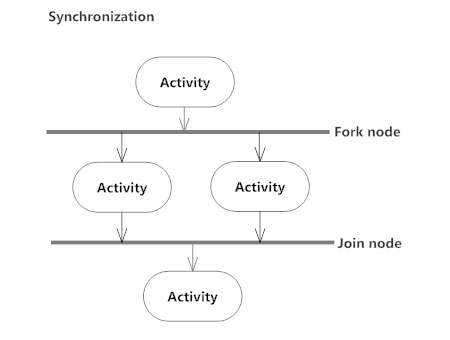

A fork node is used to split a single incoming flow into multiple concurrent flows. It is represented as a straight, slightly thicker line in an activity diagram.
A join node joins multiple concurrent flows back into a single outgoing flow.
A fork and join mode used together are often referred to as synchronization.

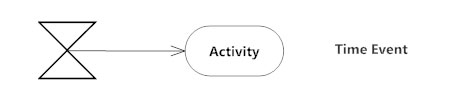

This refers to an event that stops the flow for a time; an hourglass depicts it.

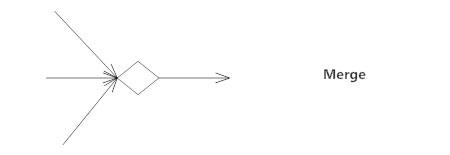

A merge event brings together multiple flows that are not concurrent.
Sent and Received Signals

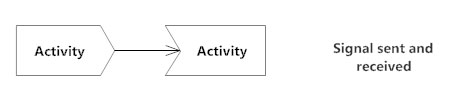

Signals represent how activities can be modified from outside the system. They usually appear in pairs of sent and received signals, because the state can't change until a response is received, much like synchronous messages in a sequence diagram. For example, an authorization of payment is needed before an order can be completed.

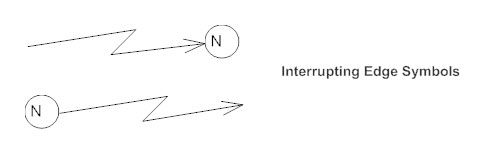

An event, such as a cancellation, that interrupts the flow denoted with a lightning bolt.

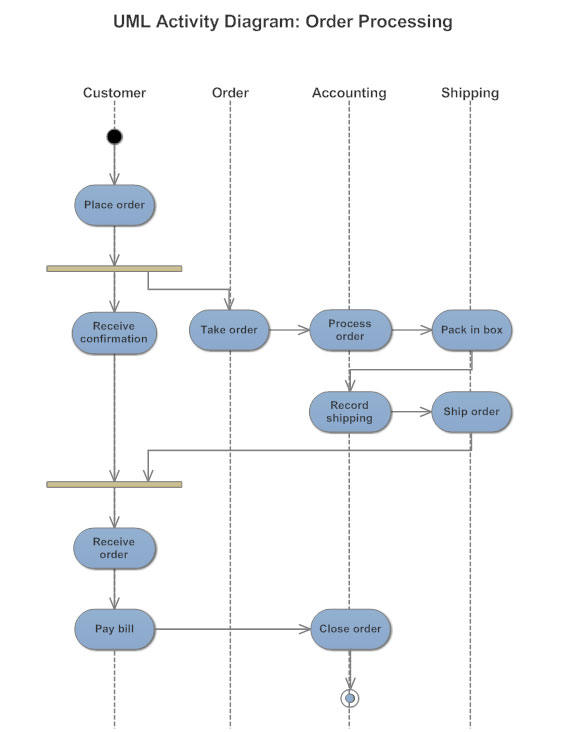

Swimlanes group related activities into one column.
Final State or End Point
An arrow pointing to a filled circle nested inside another circle represents the final action state.
Activity Diagram Examples
The best way to understand activity diagrams is to look at some examples of activity diagrams.
Click on any of these activity diagrams included in SmartDraw and edit them:
Browse SmartDraw's entire collection of activity diagram examples and templates
Activity Diagram Tutorial
You can make an activity diagram by connecting and joining various activity states. The starting point is usually marked with a dark, filled-in circle with an errow pointing to
the next state usually a rectangle with rounded corners. All action flows are represented with arrows indicating the transitions from state to state.
SmartDraw makes drawing activity diagrams easy with built-in activity diagram templates that already have all the basic symbols docked and
the tools to connect everything at your fingertips.
