Floor Plan Symbols

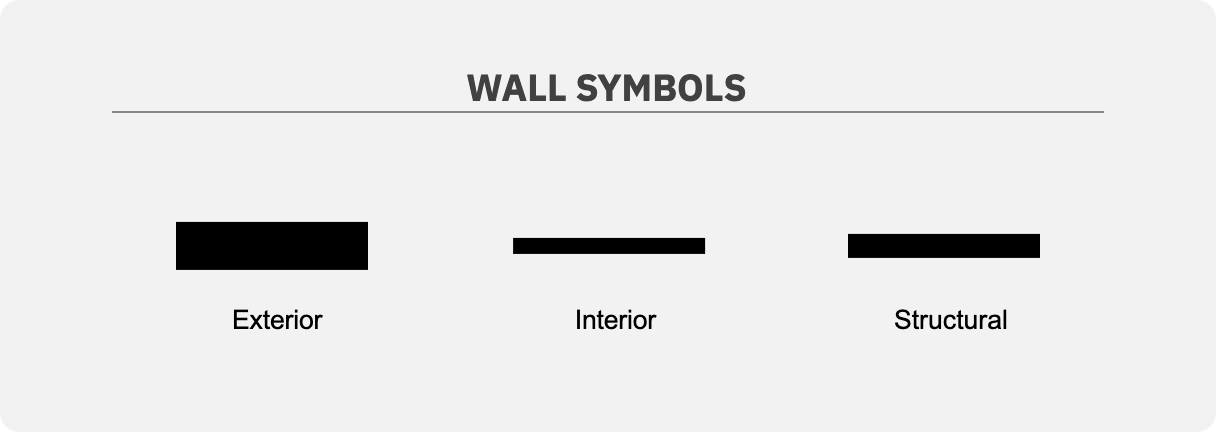

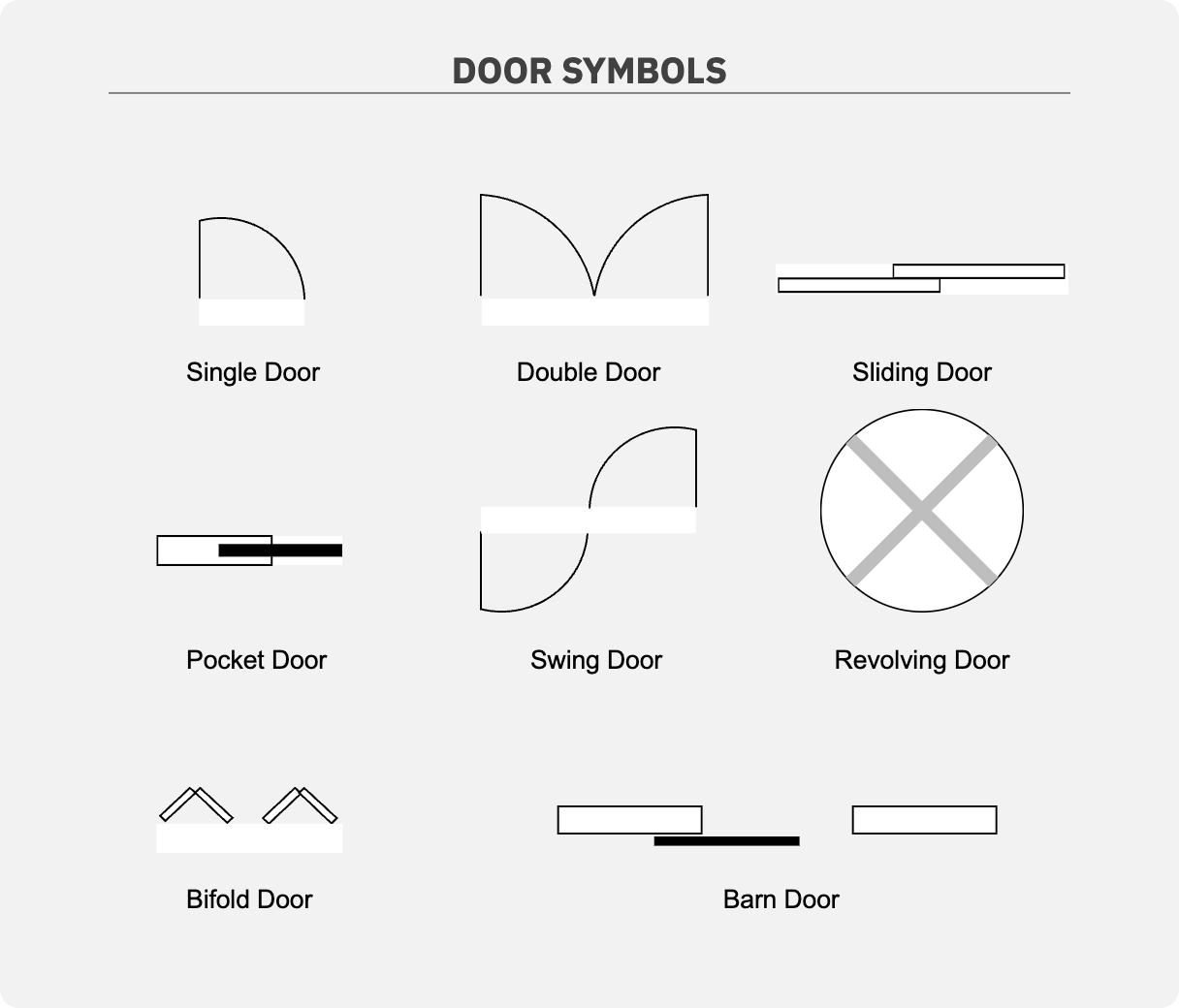

Door Symbols

Doors are typically represented by a break in a wall with an arc indicating the swing direction.

• Single door: One arc showing swing direction
• Double door: Two arcs meeting in the middle
• Sliding door: Parallel lines that look like they might slide past one another
• Pocket door: Door slides into the wall cavity
• Swinging door: Similar to a regular door except the door swings both inward and outward with an arc in each direction like in a saloon
• Revolving door: A circle segmented with lines radiating from the center
• Bifold door: Two v-shaped lines often used for closets
• Barn door: Shows a door that slides along the outside face of a wall

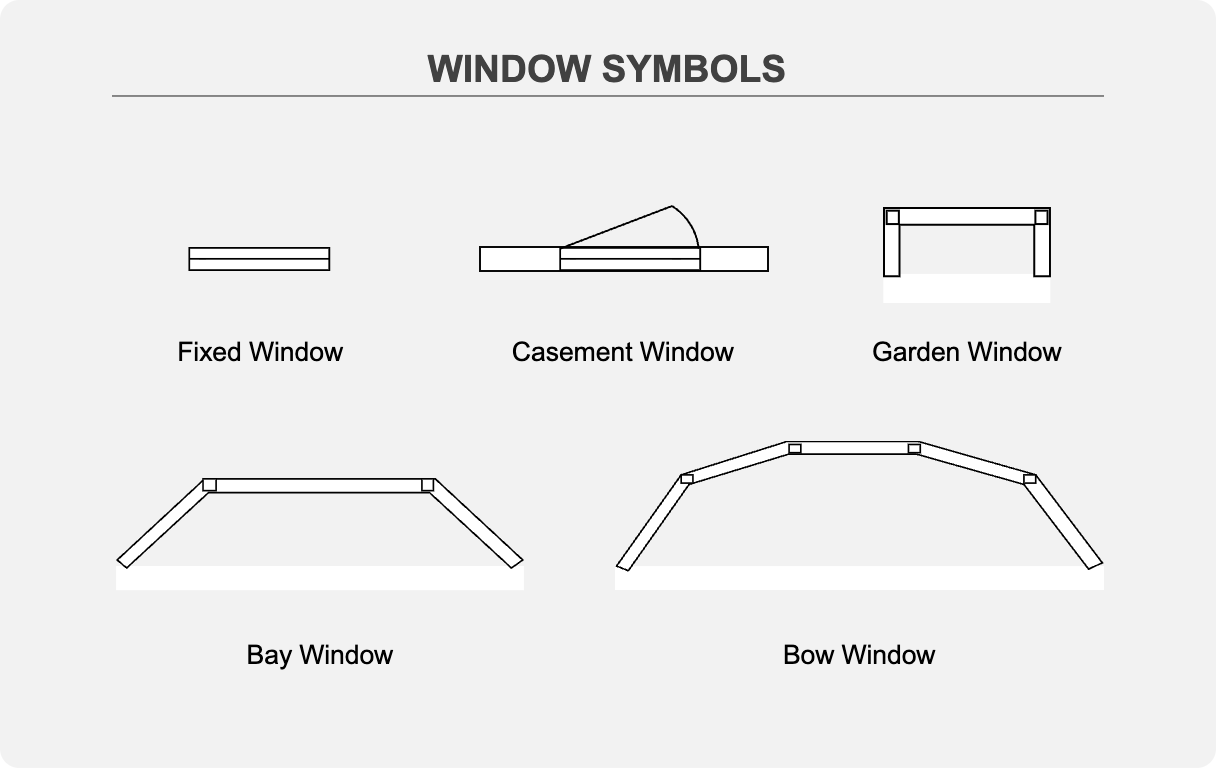

Window Symbols

Windows are drawn as breaks in the walls similar to door, often with thin lines indicating glass.

• Fixed window: Simple opening in the wall with thin lines and no swing
• Casement window: A window that swings out like a door and its symbol may include swing direction
• Garden window: A garden window is a small box that extends outward to create a box-like alcove for planting herbs
• Bay window: Composed of three segments at 45 or 30 degree angles projecting outward
• Bow window: Composed of several narrow window segments that curve outward

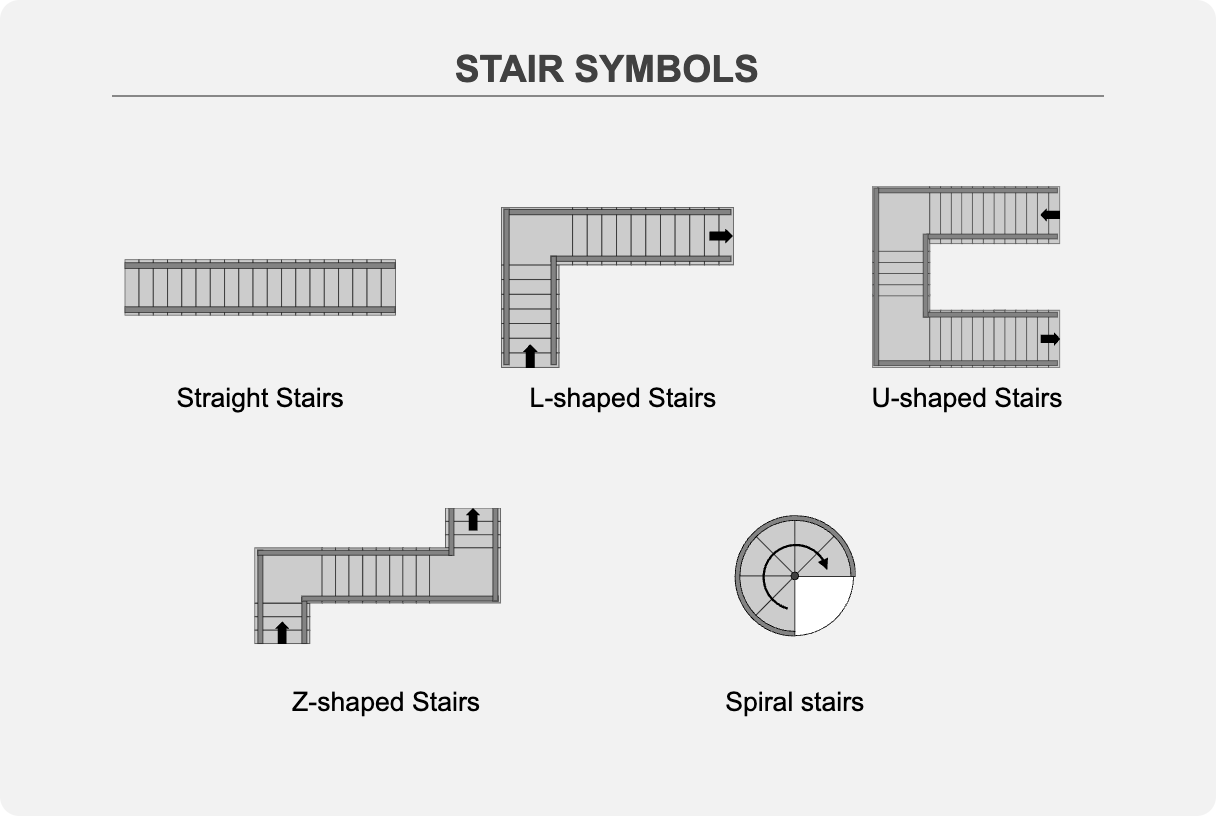

Stair Symbols

Stairs are drawn as a series of rectangles or lines with an arrow indicating direction (up or down). Sometimes the direction is indicated using the labels "UP" and "DN".

• Straight stairs: Represented with a series of parallel lines in a straight line
• L-shaped stairs: Two straight stairs connected in a 90 degree turn
• U-shaped stairs: Two parallel straight stairs with a 180 degree turn
• Z-shaped stairs: Stairs form a zigzag pattern when viewed from above
• Spiral stairs: Circular shape with steps radiating around a center point

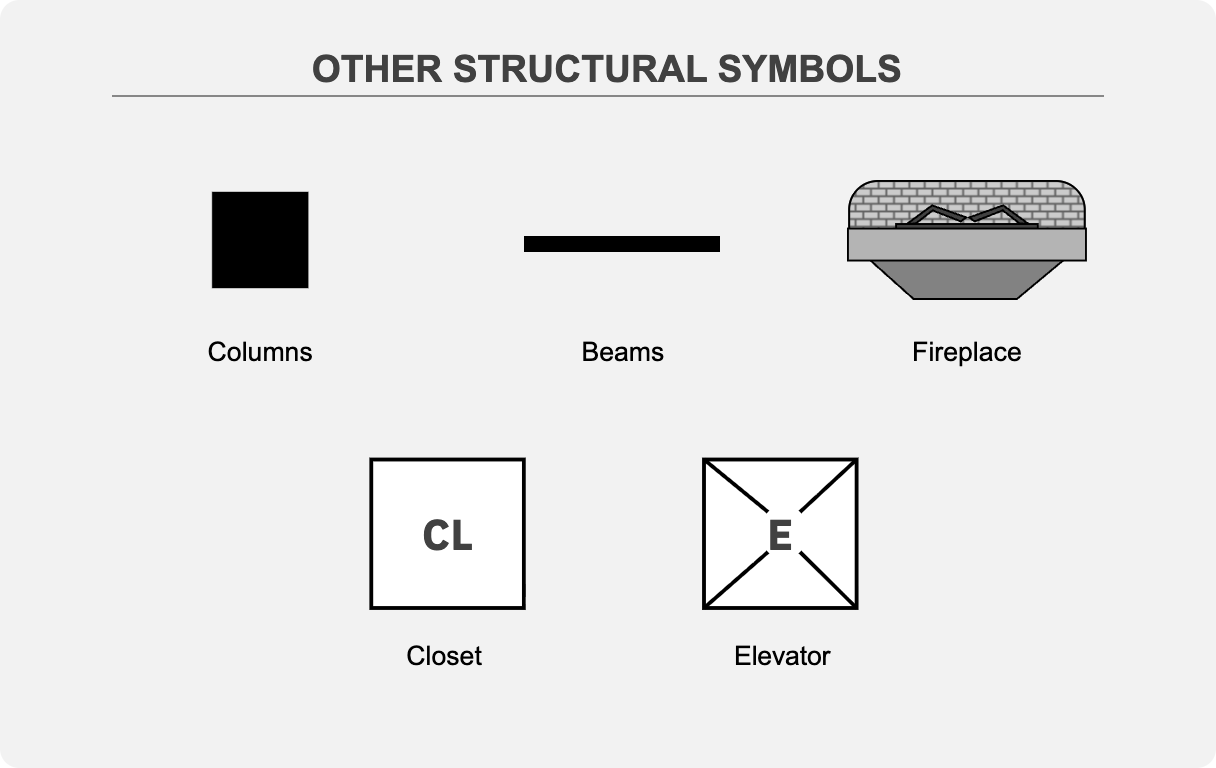

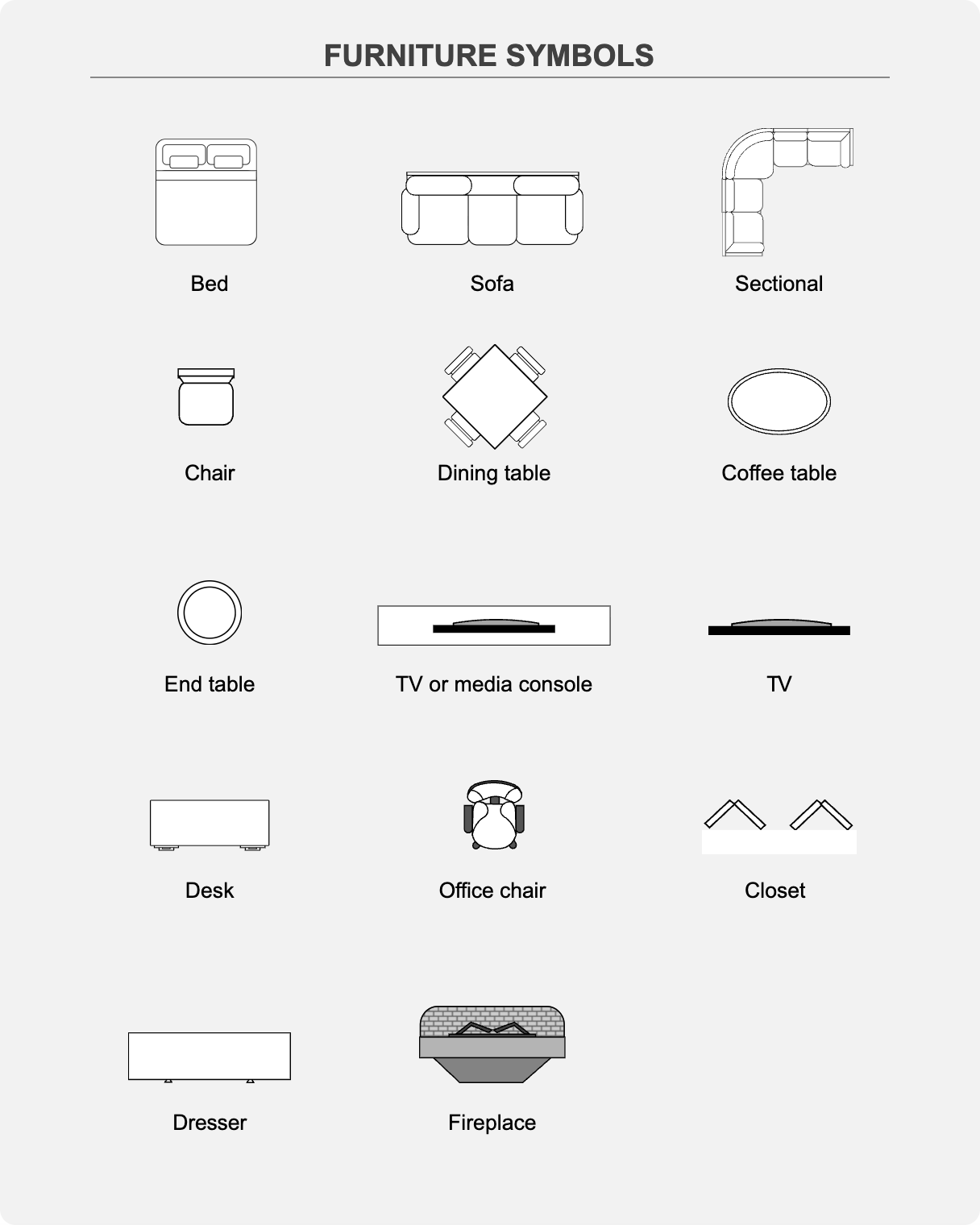

Other Structural Symbols

Other structural symbols may include load bearing columns and beams as well as fireplaces, closets, and elevators.

• Columns: Squares or circles
• Beams: Thick lines
• Fireplace symbol: Shown as a projection from a wall or a dedicated hearth area with a notation
• Closet symbol: Closets are not usually a unique symbol you'd drag and drop to a floor plan. They're usually a small rectangular or square room inside a larger room with a door, sometimes a sliding door or bifold door.
• Elevator symbol: A rectangular shaft with door openings and may include an "ELEV" label

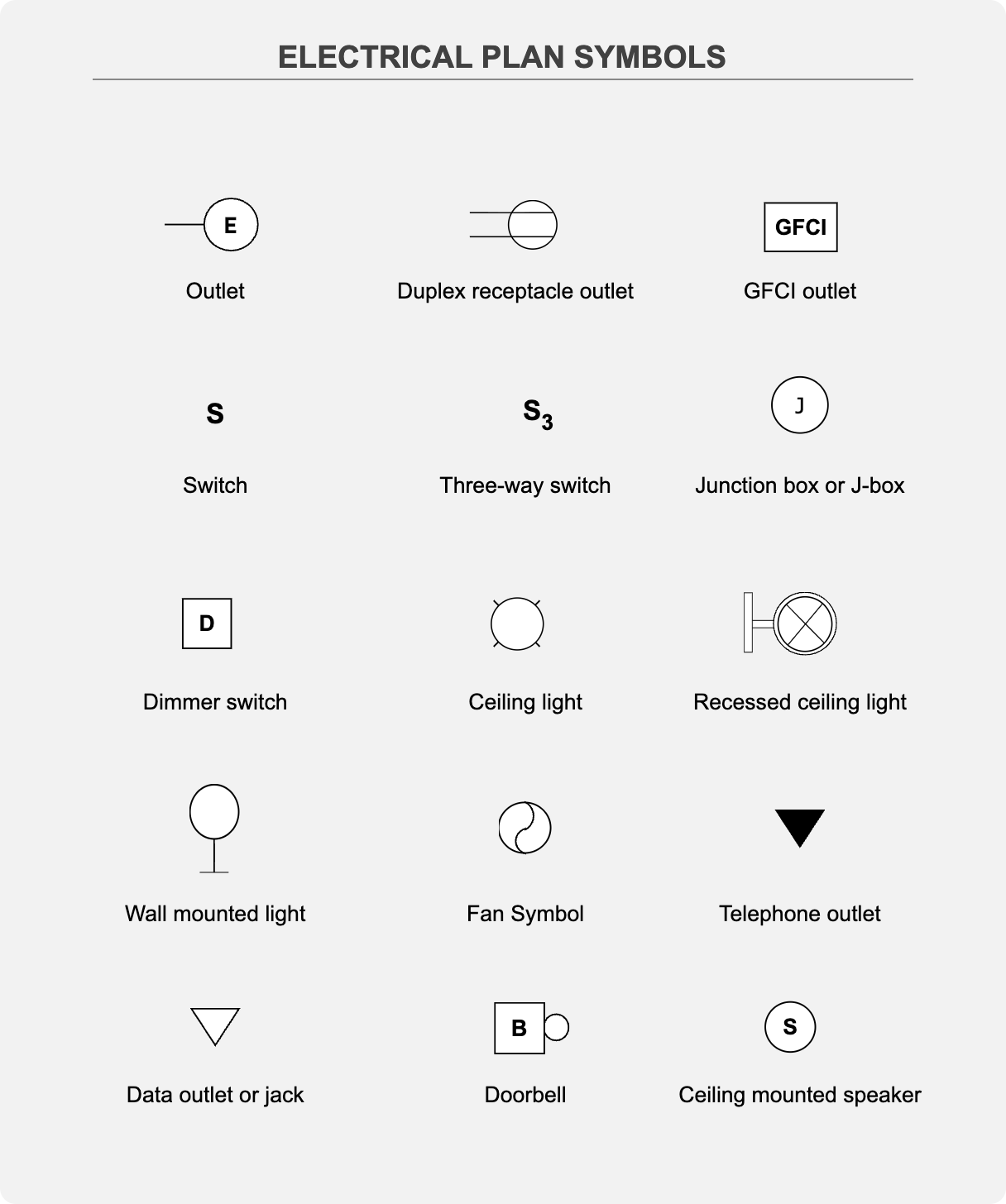

Electrical Plan Symbols

Floor plans can often include electrical symbols to indicate outlets, switches, and light fixtures. A floor plan with electrical information is often referred to as an electrical plan.

• Outlet: Small circle with a single line extending through the center of the shape outward
• Duplex receptacle outlet: A small circle with double parallel lines extending outward through the circle and beyond
• GFCI outlet: GFCI stands for Ground Fault Circuit Interrupt. Add the abbreviation to the symbol for duplex receptacle outlet.
• Switch: Often just marked with a single letter "S"
• Three-way switch: The letter "S" with a small number 3 in subscript
• Junction box or J-box symbol: Circle with a "J"
• Dimmer switch: A square with the letter "D"
• Ceiling light: A circle with 4 short lines radiating outward in an X pattern
• Recessed ceiling light: Same symbol as the ceiling light with the abbreviation RCLT attached to it
• Recessed linear light: A rectangle with a diagonal strike through it
• Wall mounted light: A circle with an attached T shaped line
• Fan symbol: A small circle surrounded by blade shapes
• Telephone outlet: A black upside down triangle
• Data outlet or jack: A white upside down triangle
• Doorbell: A square with a solid black circle in the center of a square with a B inside and a circle attached on one side
• Ceiling mounted speaker: A circle with an "S" inside

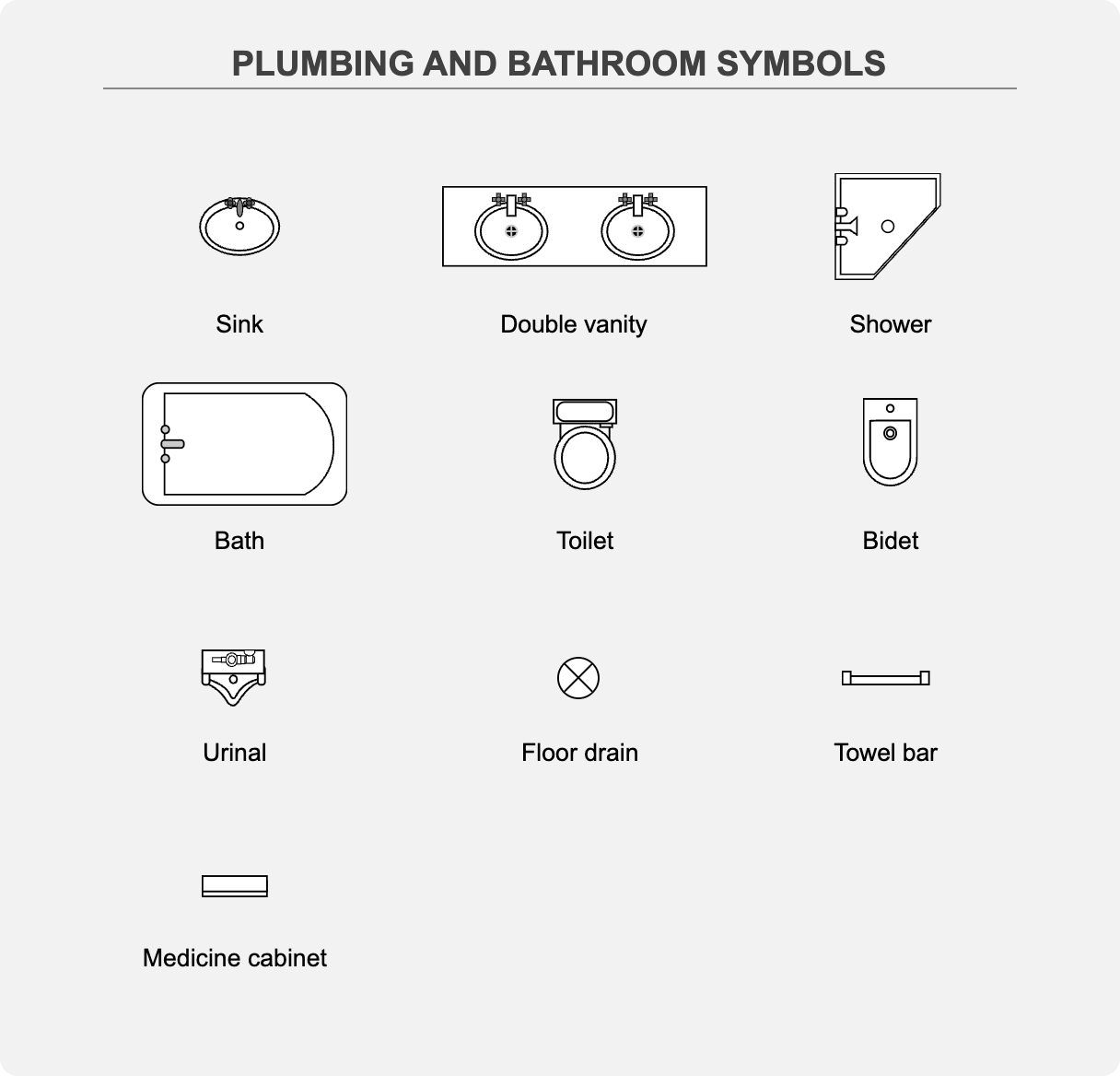

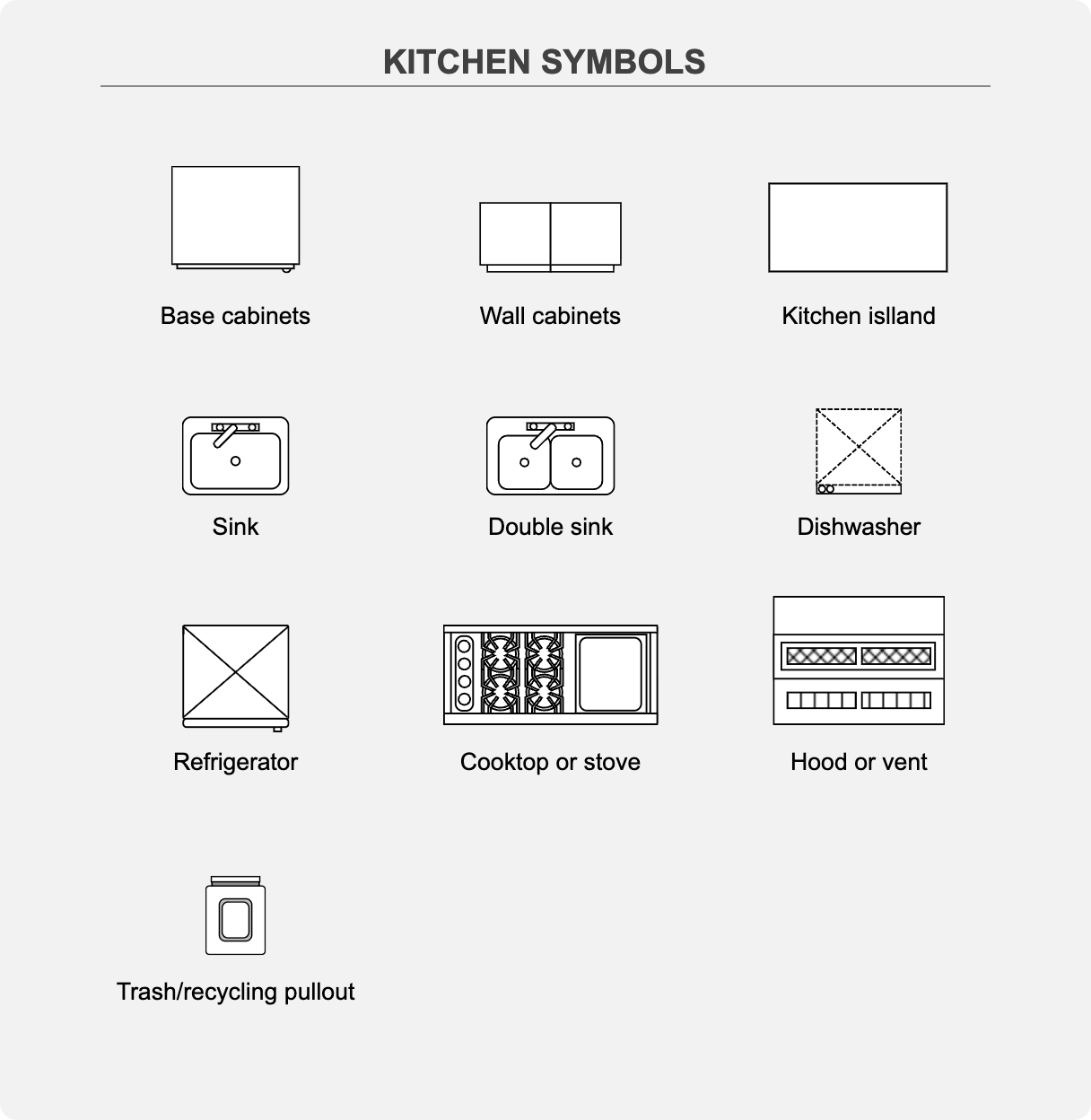

Plumbing and Bathroom Symbols

Plumbing symbols represent fixtures and water components.

• Sink symbol: Oval or rectangle with a drain
• Double vanity: A long rectangle with two sink shapes inside spaced evenly apart
• Shower symbol: Box or curved enclosure
• Bath symbol: A rectangle with an oval inside with a small circle to indicate the drain or faucet location
• Toilet symbol: Rounded bowl shape
• Bidet symbol: Similar to a toilet, but smaller and more oval, often without a tank shape
• Urinal symbol: A small, narrow oval or U-shape mounted against a wall line
• Floor drain: A small circle or square, sometimes with a grid or cross lines inside
• Towel bar: A thin straight line mounted along a wall, sometimes with small brackets at each end
• Medicine cabinet: A shallow rectangle on a wall, sometimes marked with a mirrored line or cross to indicate a reflective surface

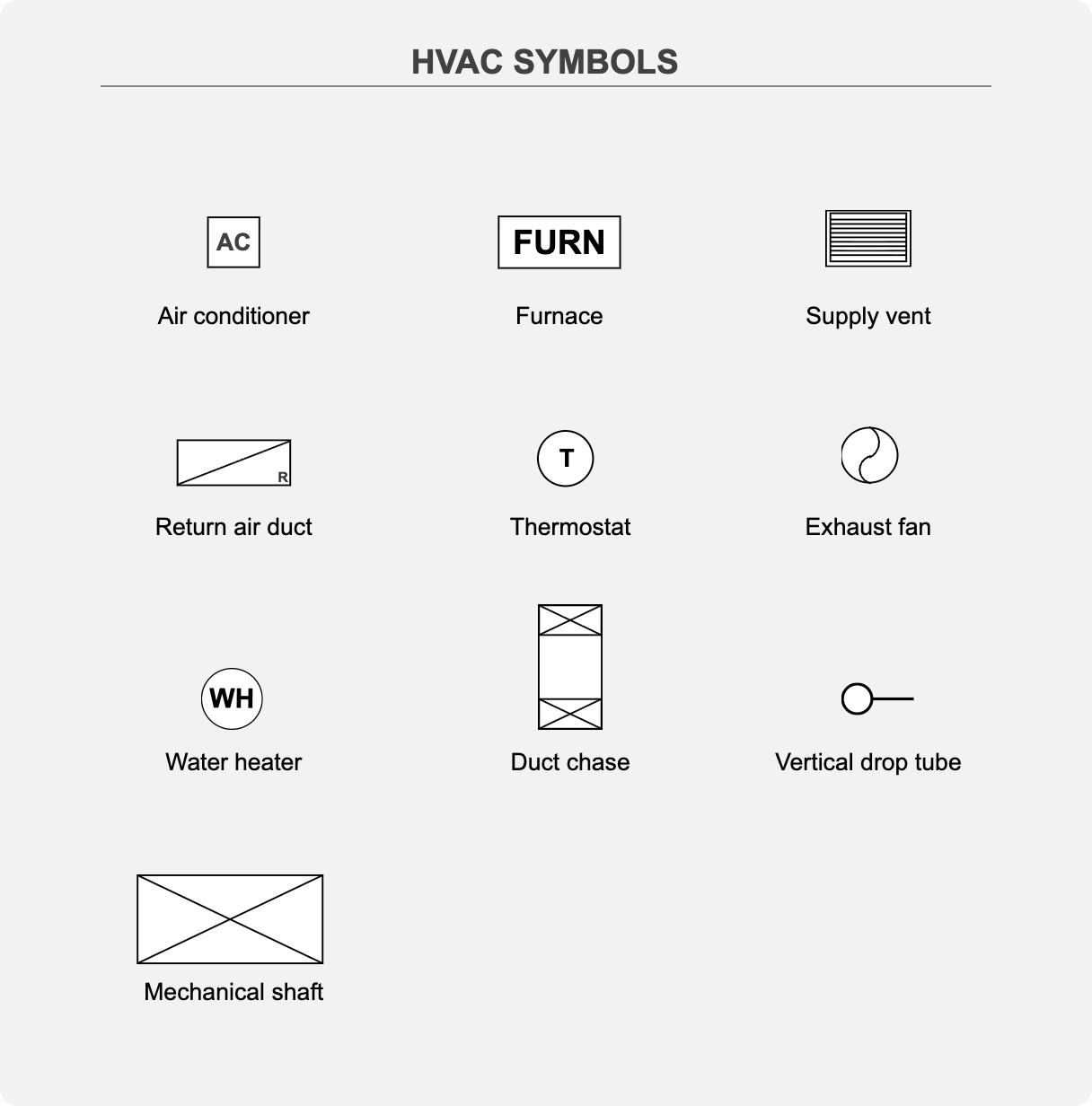

HVAC Symbols

Many floor plans include basic HVAC and utility symbols even when a separate mechanical plan exists.

• Air conditioner: A rectangle labeled "AC" or containing a snowflake icon
• Furnace symbol: A square or rectangle labeled "FURN" or "F", sometimes with vent lines
• Supply vent: A small rectangle or square with parallel lines indicating airflow direction into a room
• Return air duct: A square or rectangle with a slash through it or labeled "R" to show air returning tot he system
• Thermostat: A small circle with a "T" inside
• Exhaust fan: A circle with a yin/yang swirl pattern inside
• Water heater: A circle or cylinder labeled "WH"
• Duct chase: A rectangular boxed-in area showing where ductwork runs vertically or horizontally
• Vertical drop tube: A circle or square with a vertical line, indicating piping or ductwork passing between floors
• Mechanical shaft: A larger enclosed rectangle labeled for mechanical systems, often spanning multiple floors

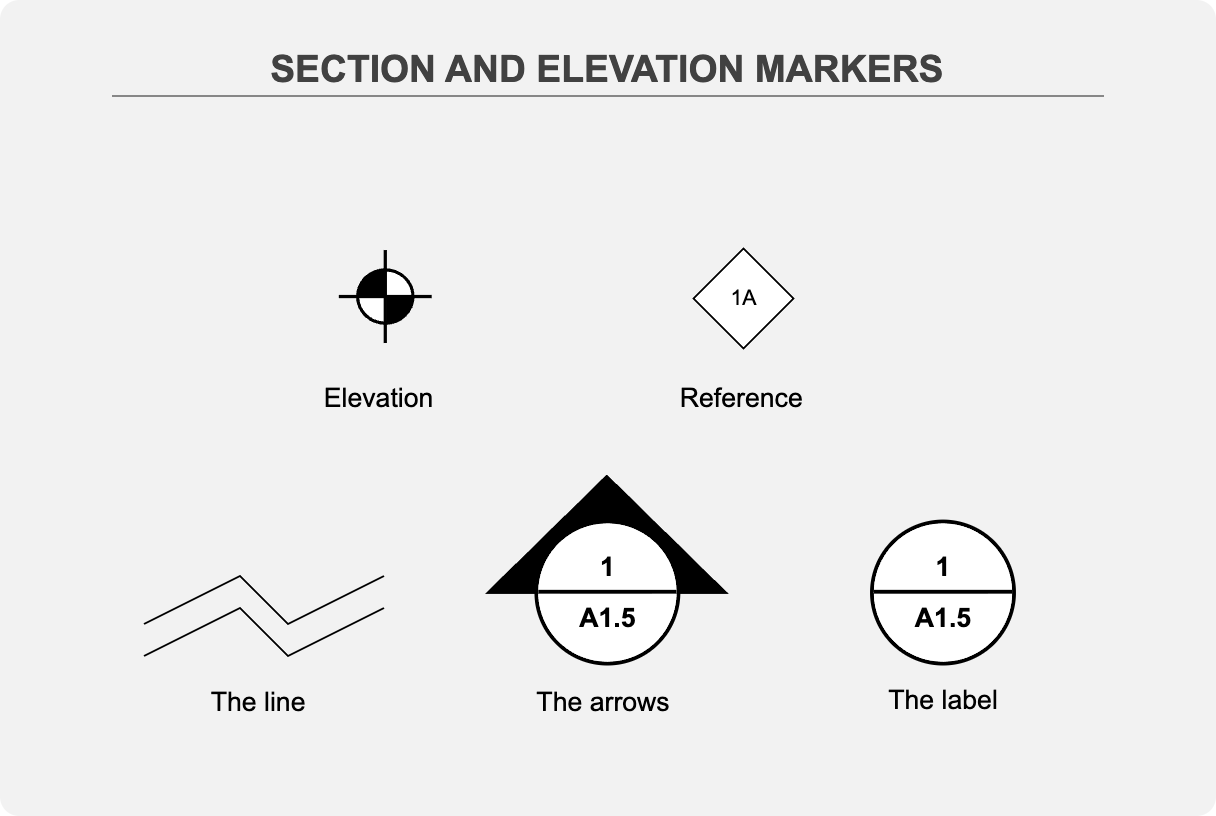

Section & Elevation Markers

Markers indicate where drawings are "cut" to show different views like wall construction, ceiling heights, and structural elements.

Common elements:

• Circle or symbol with arrows
• Reference numbers or letters

How to read it:

• The line = where the cut is made
• The arrows = which direction you're viewing
• The label = where to find that section drawing on another page

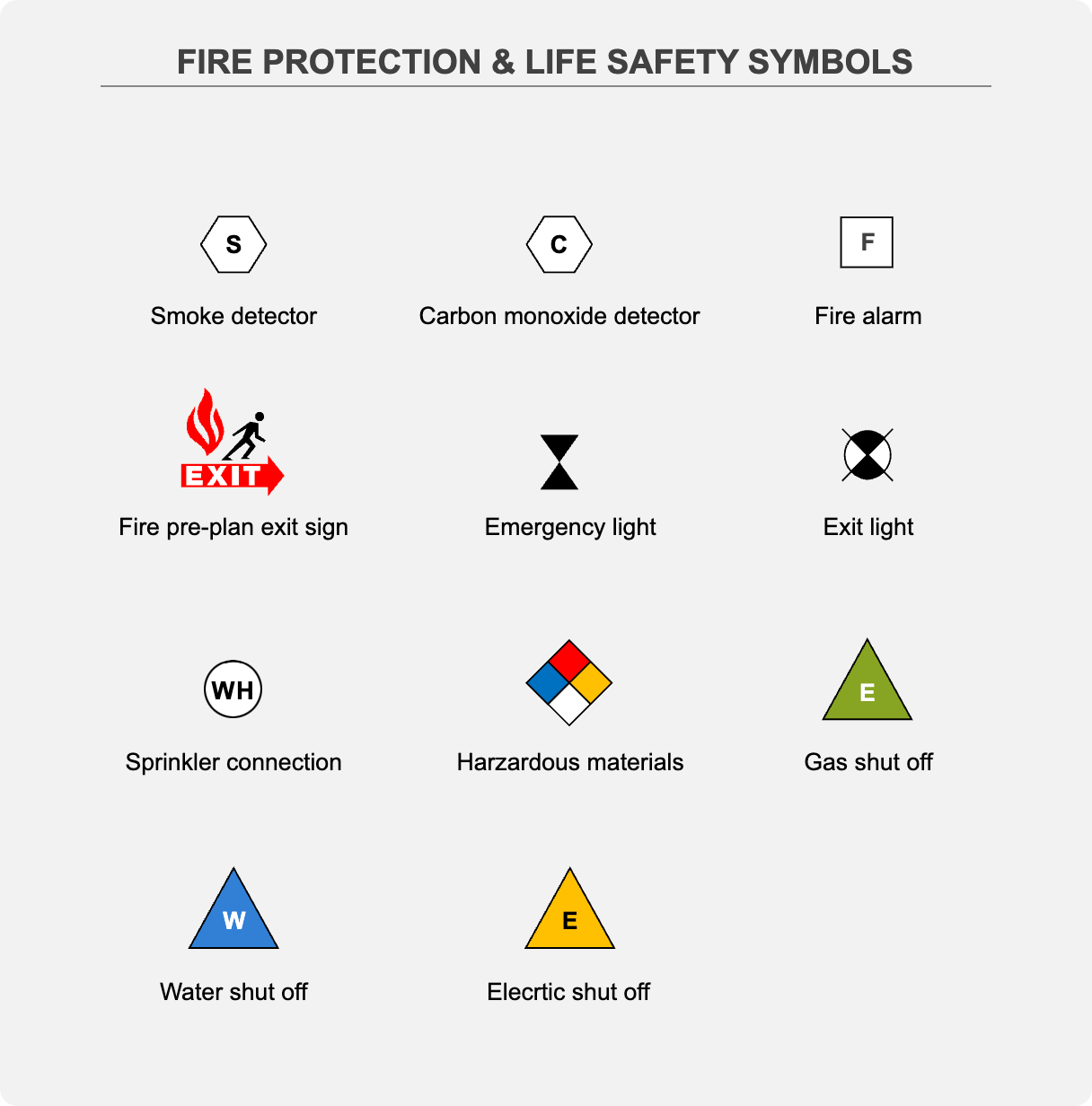

Fire Protection & Life Safety Symbols

Emergency and fire safety systems to show the floor plan's code compliance.

• Smoke detector: A hexagon with the letter "S" in its center
• Carbon monoxide detector: A hexagon with the letter "C" in its center
• Fire alarm: A square with the letter "F" inside
• Fire pre-plan exit sign: On a fire pre-plan the NFPA standard symbol is a "running man" pictogram with the word "Exit"
• Emergency light: Two inverted triangles that look like an hourglass symbol
• Exit light: A circle divided into 4 pie pieces with the top pie piece colored a solid black color
• Sprinkler connection: Two concentric circles
• Hazardous materials: A diamond shape divided into four squares: blue, red, yellow, and white
• Gas shut off: Green triangle with the abbreviation NG
• Water shut off: Blue triangle with the letter W
• Electric shut off: Yellow triangle with the letter E

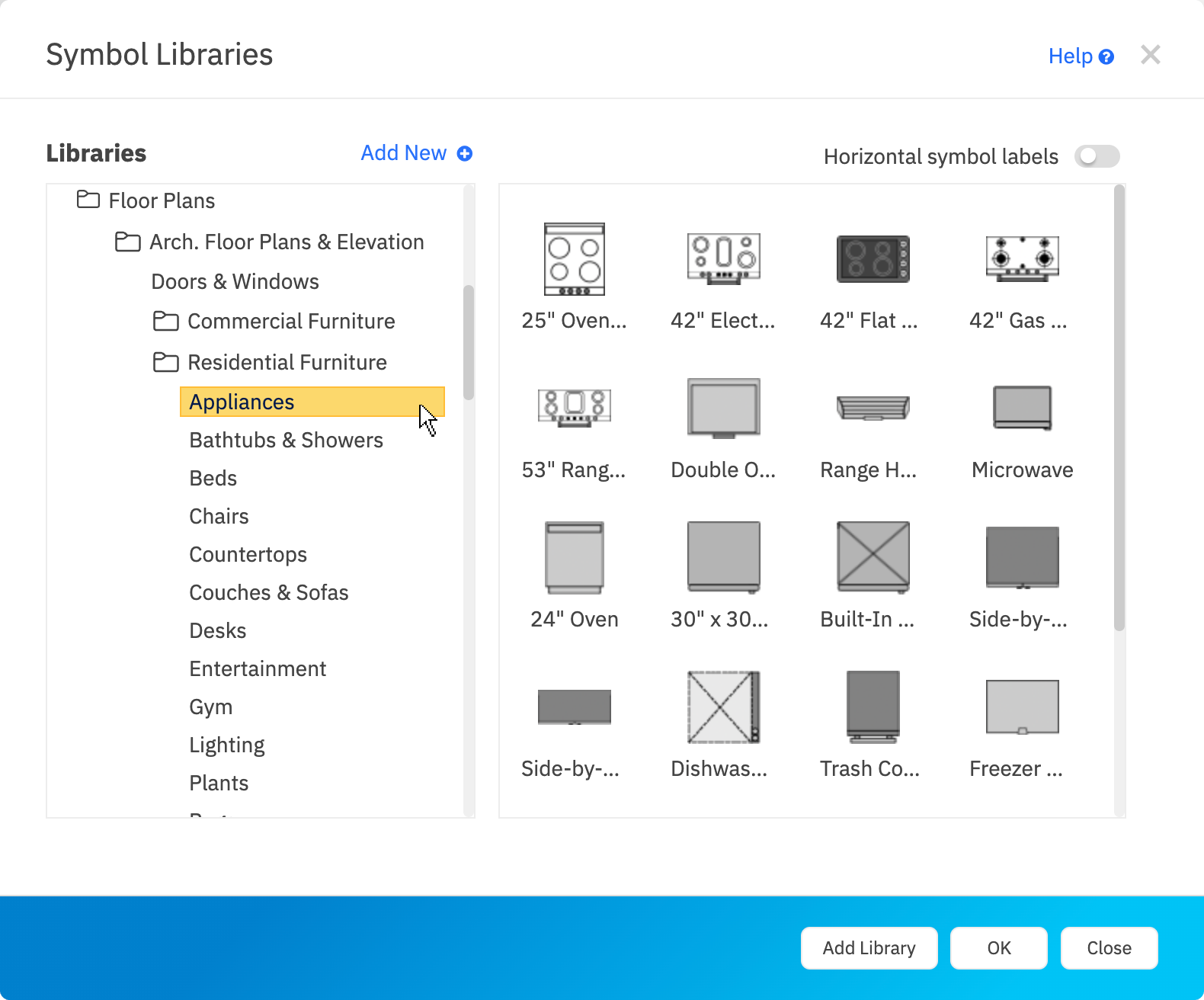

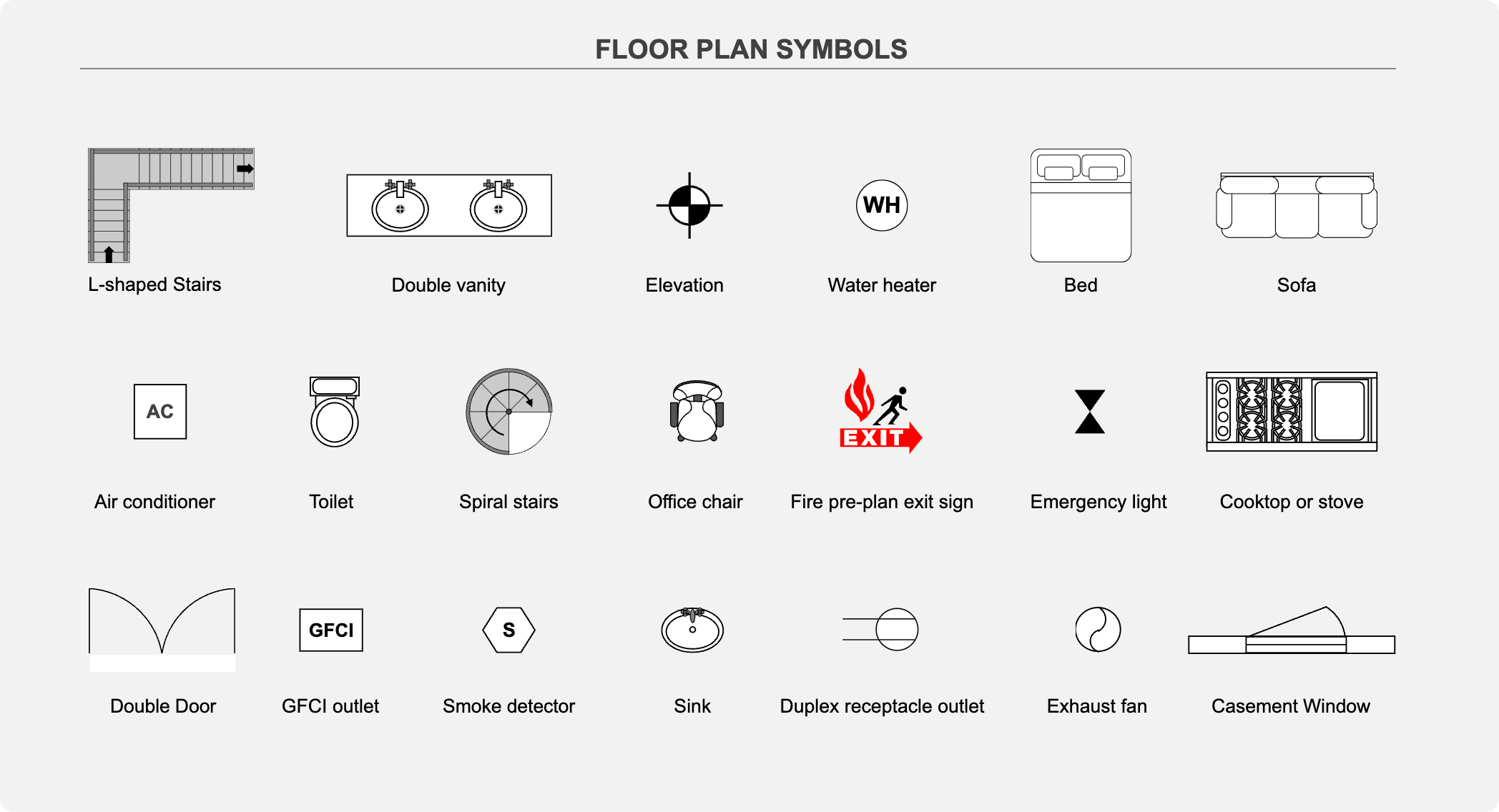

Smartdraw Has All the Floor Plan Symbols You Need
