Design Something New or Recreate an Existing Building
SmartDraw AI lets you generate floor plans with natural language prompts or your own measurements. Whether you're designing a building that hasn't been built yet or documenting one that already exists, SmartDraw AI can help you get started faster. The generated floor plan is fully editable by SmartDraw's intuitive yet powerful set of floor planning tools.
SmartDraw can also create commercial floor plans like offices and medical establishments.

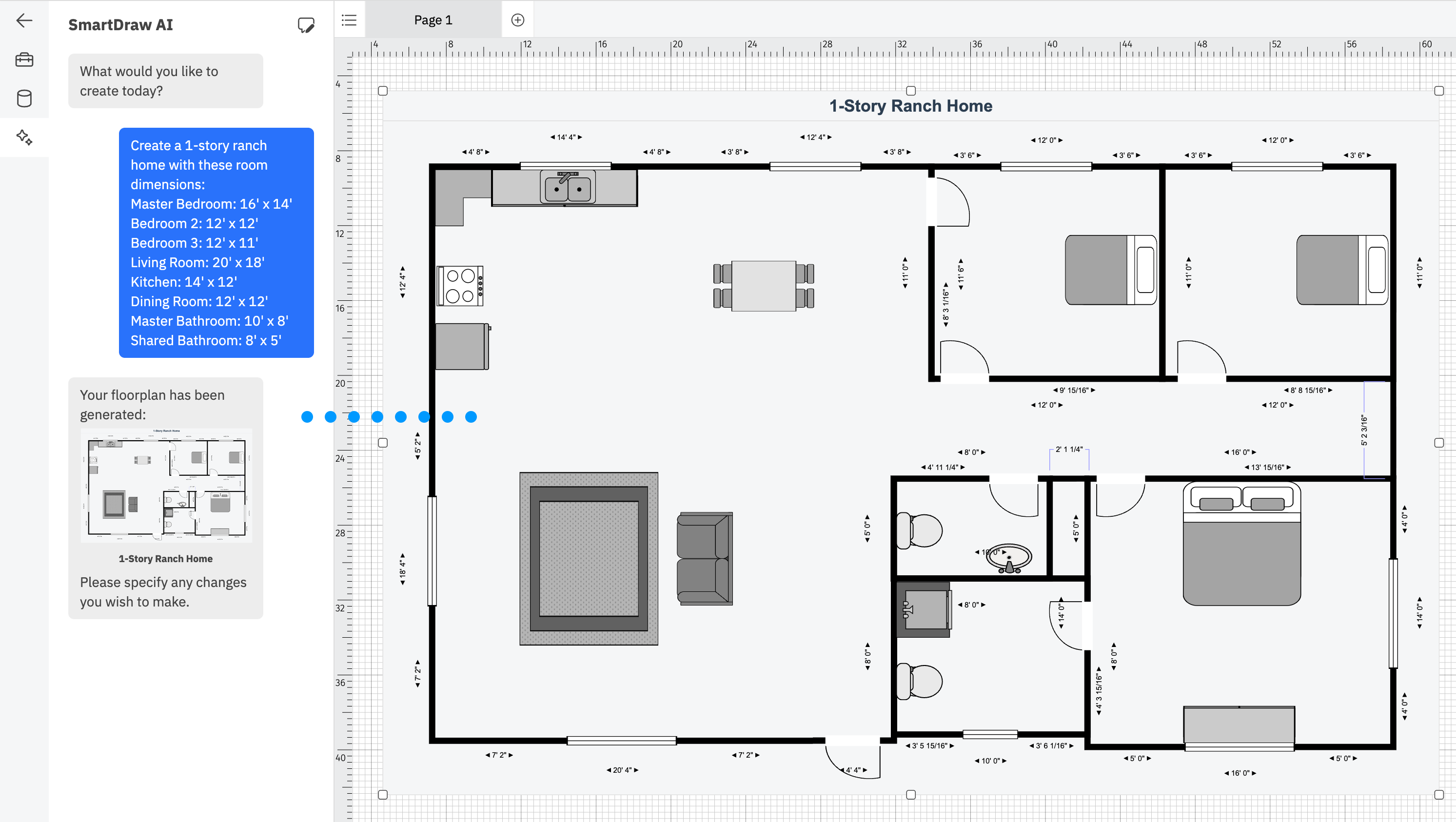

Create a floor plan for a small law firm. Include a reception area, attorney offices, paralegal workstations, conference rooms, a break room, and restrooms.

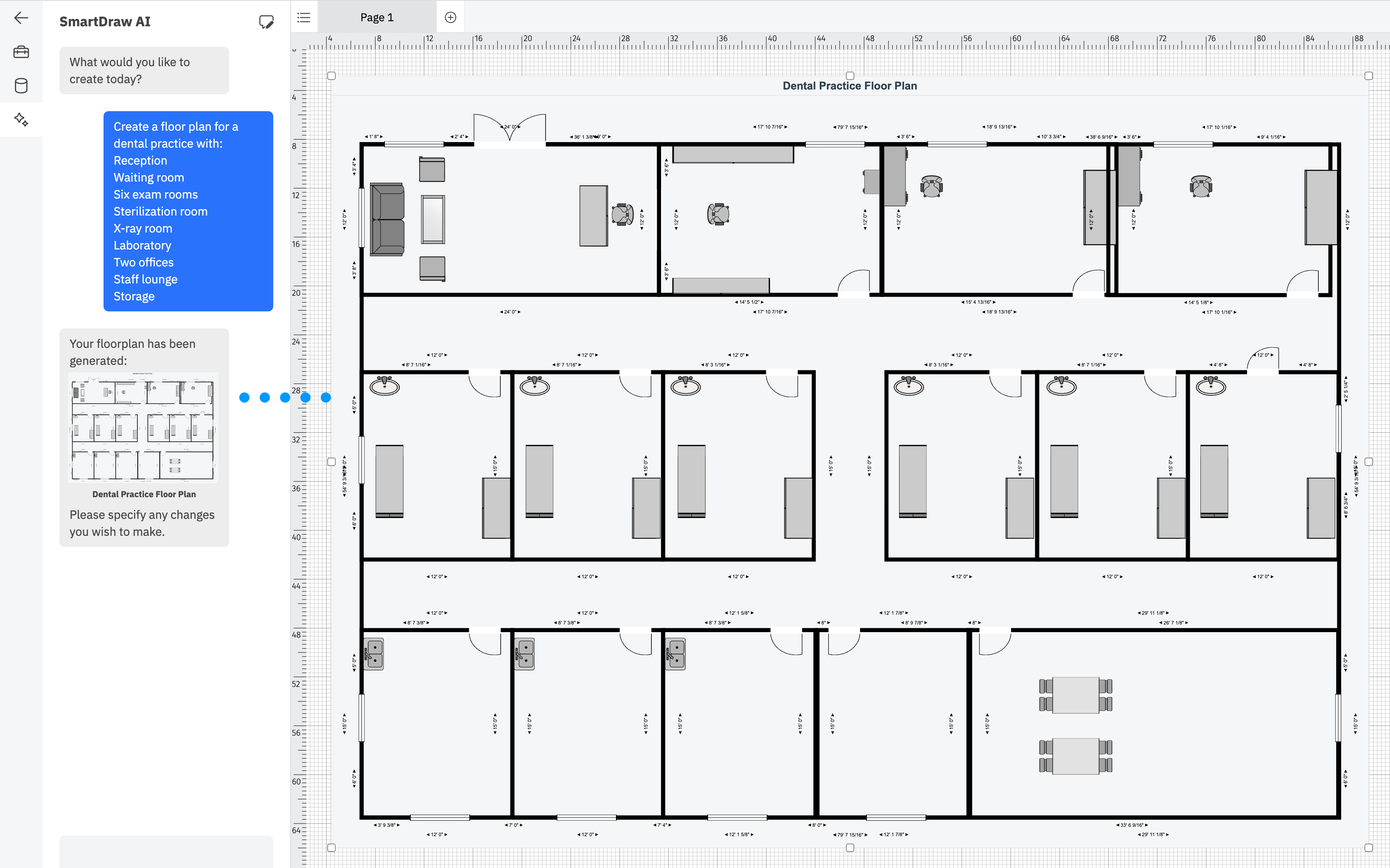

Create a floor plan for a dental practice with a reception, exam rooms, offices, a lounge, and storage.
The AI uses general architectural knowledge to produce an editable floor plan that gives you a strong starting point.
The more detail you provide about the layout, the closer the results will be to something you can turn into a real project.

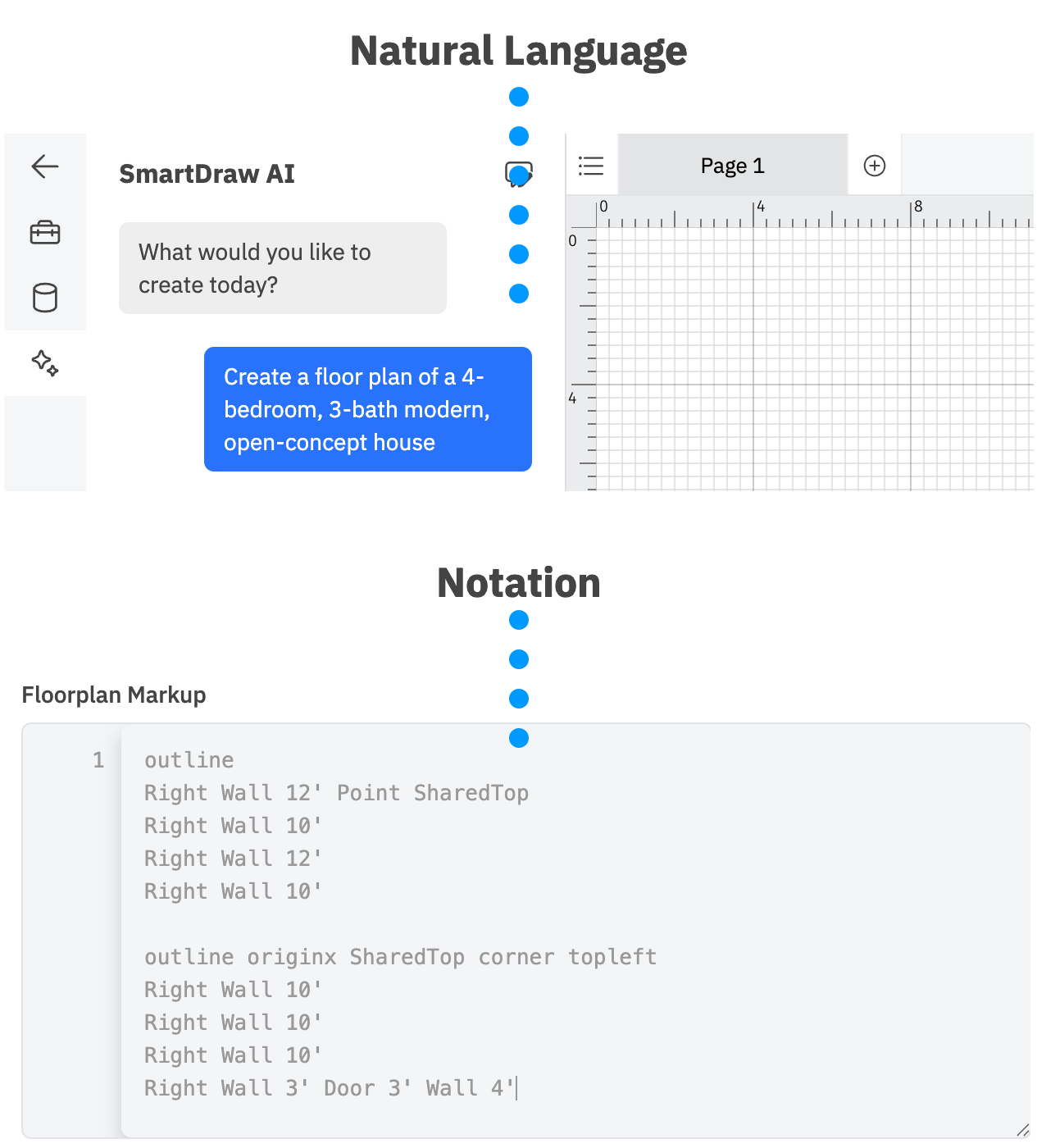

When accuracy matters, you'll want to start with the exact measurements for your space. SmartDraw's innovative Floor Plan Notation provides a precision-focused alternative to long natural language prompts to describe a layout.
SmartDraw Floor Plan Notation is a simple text-based format for describing rooms and buildings with exact dimensions. If you can walk around your space and measure the walls, you can create this notation easily. Designed for both people and AI, it transforms measured descriptions into fully editable floor plans.
To use Floor Plan Notation, you simply describe a room as a sequence of walls. As you move around the room, note whether each corner turns left or right. You can also specify doors, windows, and other openings along each wall. SmartDraw converts your description into a scaled, editable floor plan.
Learn more about Floor Plan Notation in detail here.
A 12-by-14 room with a 3-foot door on the bottom wall:
outline originx 10' originy 10' corner topleft thickness 4"
Right Wall 12'
Right Wall 14'
Right Wall 12'
Right Wall 2' Door 3' Wall 9'
A bedroom with an attached bathroom:
outline
Right Wall 12'
Left Wall 2'
Right Wall 5' Window 6' Wall 5'
Right Wall 20' Point Bathroom
Right Wall 3' Door 3' Wall 4' PocketDoor 5' Wall 4' DoubleDoor 6' Wall 3'
Right Wall 18'
outline originx Bathroom corner topright
Right Wall 12'
Right Wall 10'
Right Wall 6' Point Closet Wall 6'
outline originx Closet corner bottomright
Right Wall 8'
Right Wall 6'
If your information isn't already in the right format, AI can help organize or convert it before SmartDraw builds an accurate, editable floor plan.
