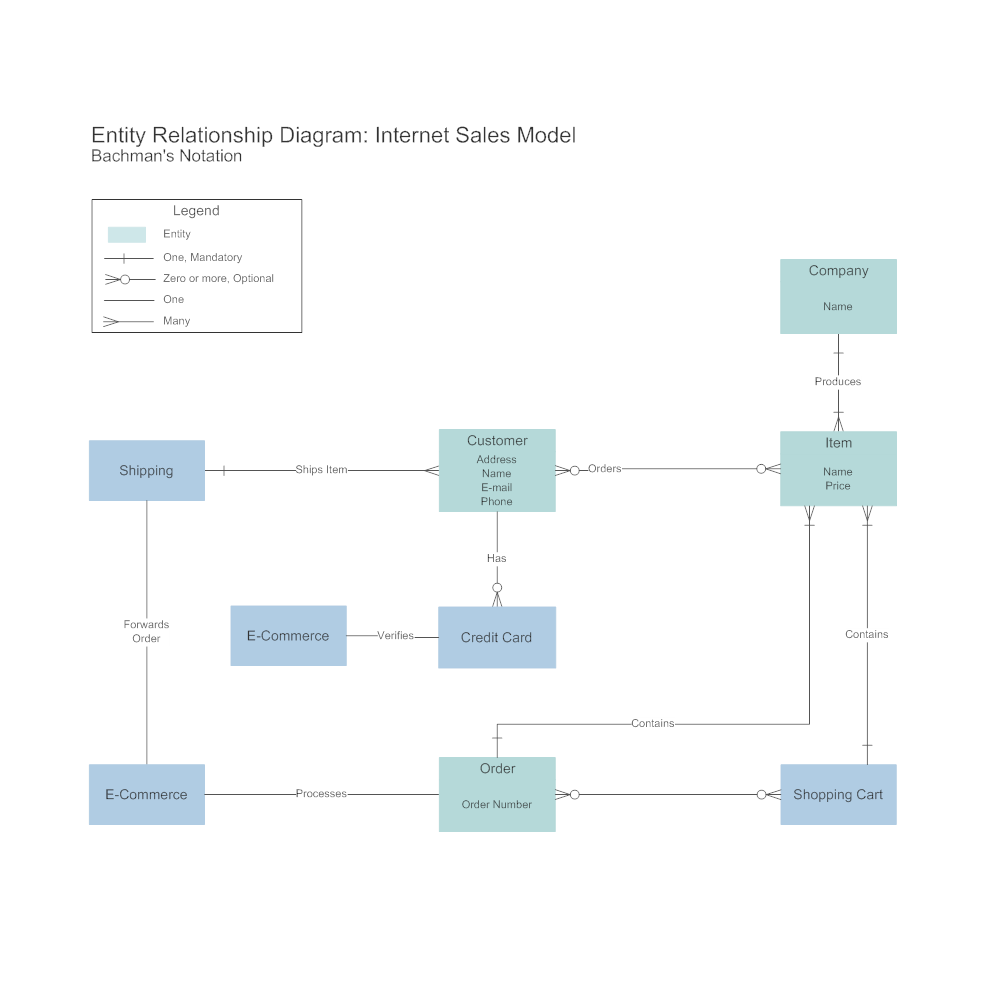

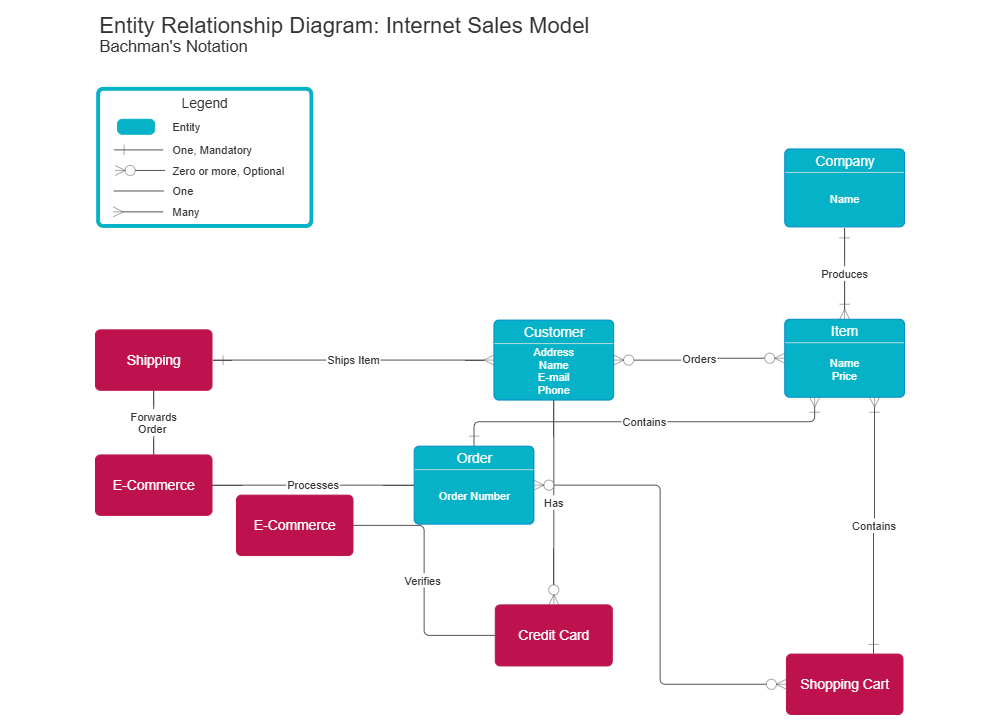

Entity Relationship Diagram: Internet Sales Model
Bachman's Notation
Legend
Entity
One, Mandatory
Zero or more, Optional
One
Many
Orders
Ships Item
Customer
Address
Name
E-mail
Phone
Shipping
Forwards
Order
E-Commerce
Processes
Order
Order Number
Has
Credit Card
Item
Price
Produces
Company
Verifies
Shopping Cart
Contains

Product
