SmartDraw makes it easy to create professional parking plans with no CAD experience required. Drag and drop standard striping for stalls and rows, mark handicap spots and crosswalks, add stop signs, and lay out medians. Get a client-ready design in minutes.
SmartDraw has an extensive collection of parking plan symbols you can drag-and-drop to your design. You can add parking stalls individually or in sets, add directional arrows, pavement markings, median islands, lamps, fire hydrants, and more. Drag and drop cars or other vehicles to create a polished look for a presentation or report.
You can place any parking lot design in context by importing a Google Maps or satellite image and scale it. Use the satellite image as your foundation for your new parking plan. You can also import any existing site plan file as a PDF, scale it, and then build your new parking plan directly on top.
Layers let you separate your drawing into distinct views and focus on the system you're working on. You can create a site plan on one layer and add a parking plan on a different layer. Use a scale-independent annotation layer to keep track of information like the parking drawing's author and other settings.
SmartDraw works with the tools you already use. You can add parking plans to:
Unlike other apps, SmartDraw doesn't force you to save files to its own cloud unless that's what you choose. You can keep full control of your data by saving files directly to your existing provider:
Share your parking plan with anyone, even if they don't own a copy of SmartDraw, with a link. You can also easily export any diagram as a PDF or common image formats like PNG or SVG.
Have a question? Chat or email us. SmartDraw support is in-house and free!

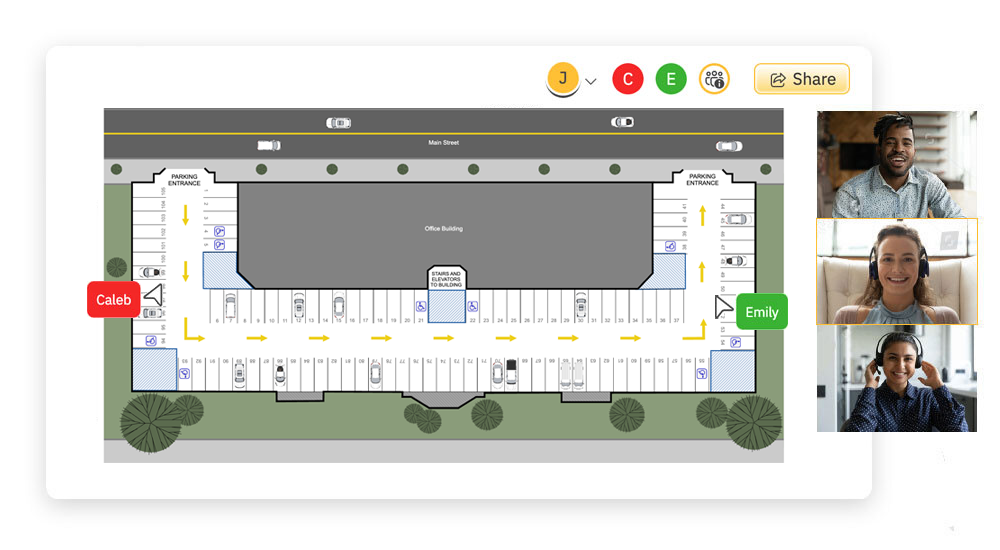

SmartDraw makes it easy to work with a team on any parking lot layout.
You can work on designing the same parking plan in real time. Your team or client can easily share comments and feedback.
SmartDraw also works where you already communicate with your team. You can collaborate on parking plans in Microsoft Teams®, Slack or Confluence.

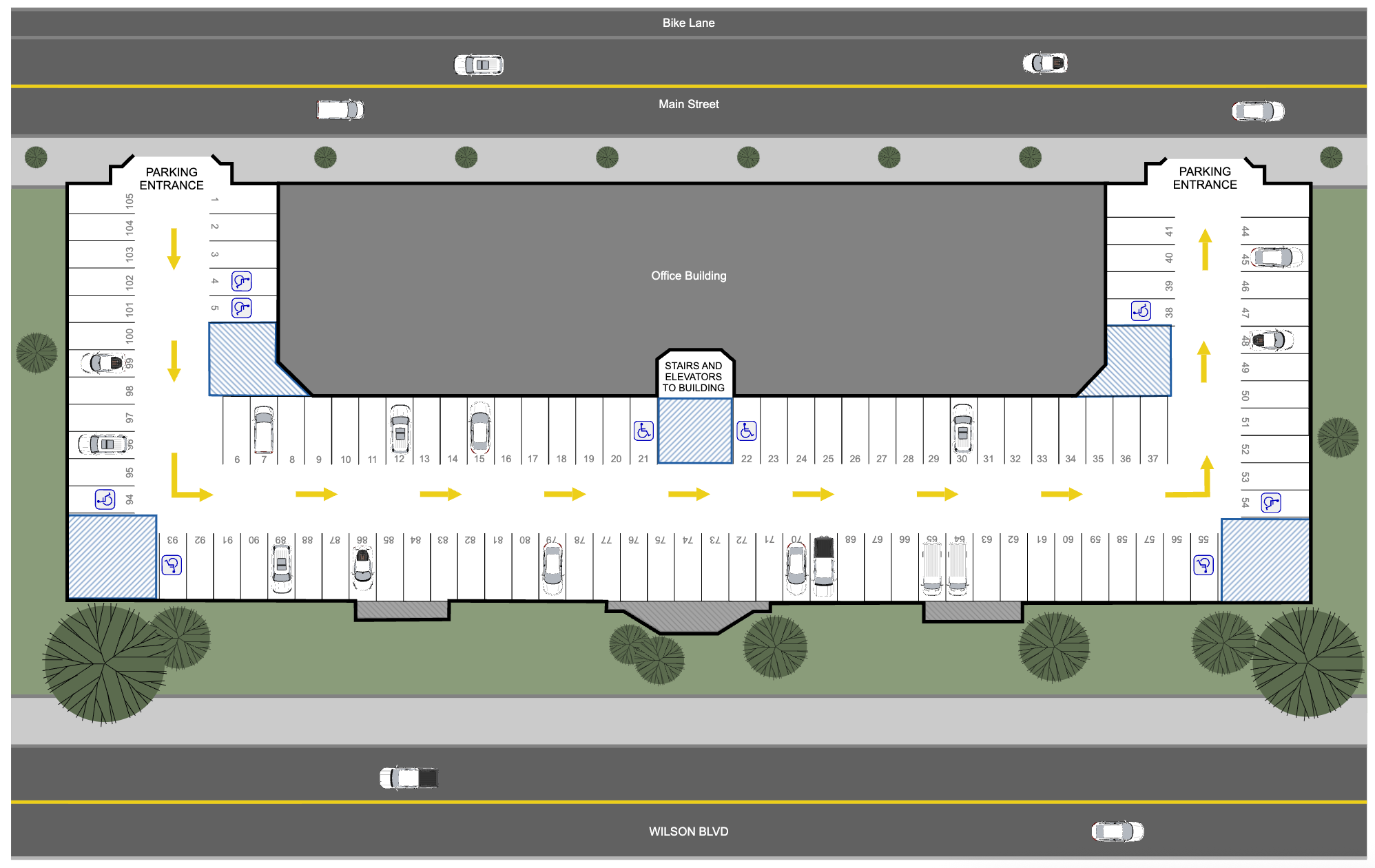

Create parking plans with the help of parking lot templates you can easily modify.
Start with a Parking Plan template. In SmartDraw, you can find parking plans under the Floor Plans - Commercial category after selecting New Document on your Dashboard. We suggest you start with the template named Parking Garage. It will give you access to all the relevant libraries and tools you'll need to complete your design.
Use Units & Scale under Page to define the scale you want to use. You can set and change this scale at any time. SmartDraw has a set of built-in standard engineering, architectural, and metric scales, and you can even set your own custom scale as needed.

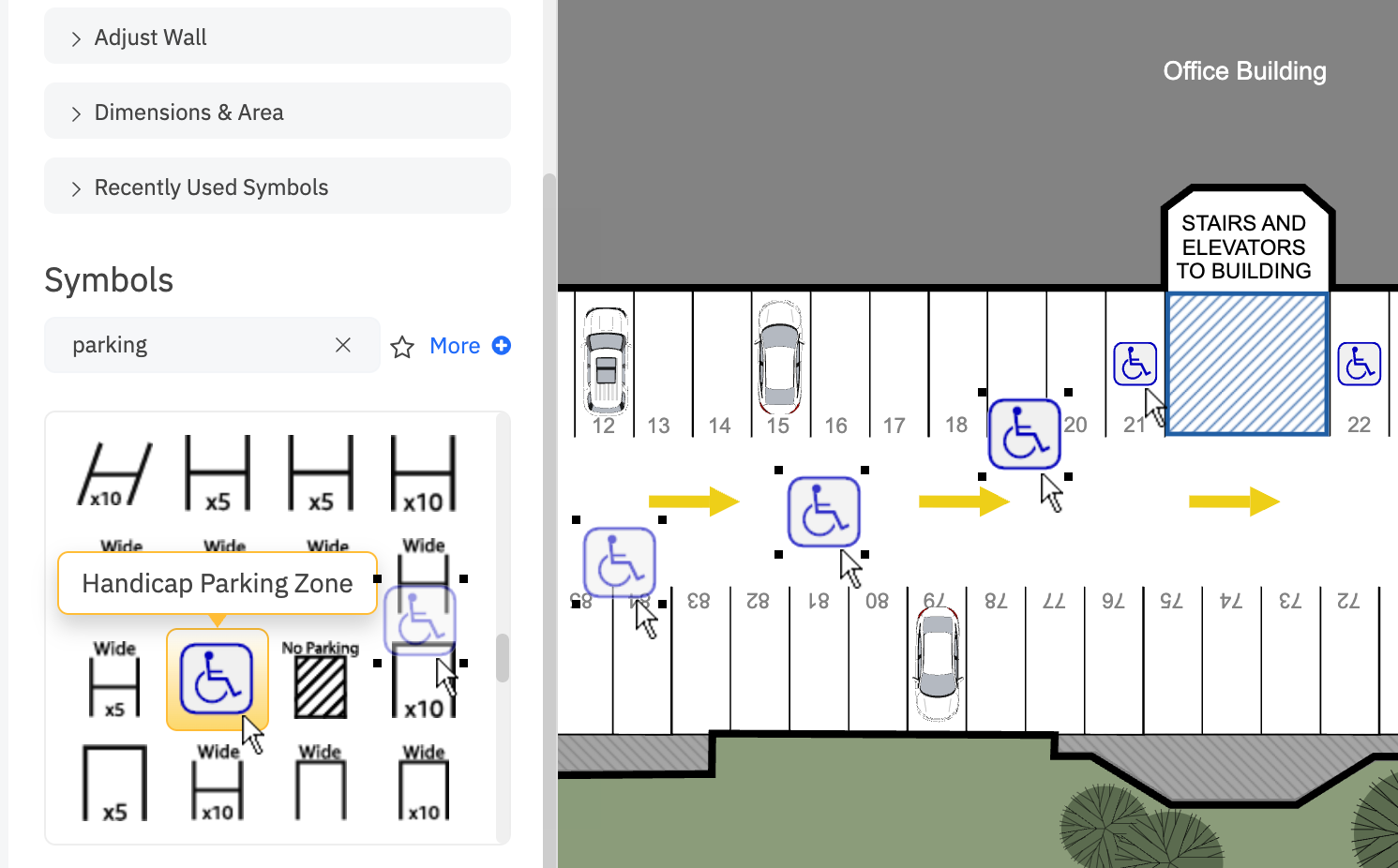

Drag-and-drop parking stalls and striping outlines from the libraries docked next to your drawing area. You can add parking stalls one at a time, or better yet, add a complete row of 10 or 5 spaces. SmartDraw has pre-designed rows for both angled and perpendicular spots. You can even choose between standard width or wider stalls.
Mark handicap spots, add directional arrows and pedestrian crossings, and design medians as needed just by simply dragging-and-dropping relevant symbols. You can easily resize and rotate the symbols added using your mouse.
Export your drawing as a PDF or PNG. Or you can share your parking plan using a link with clients or contractors.

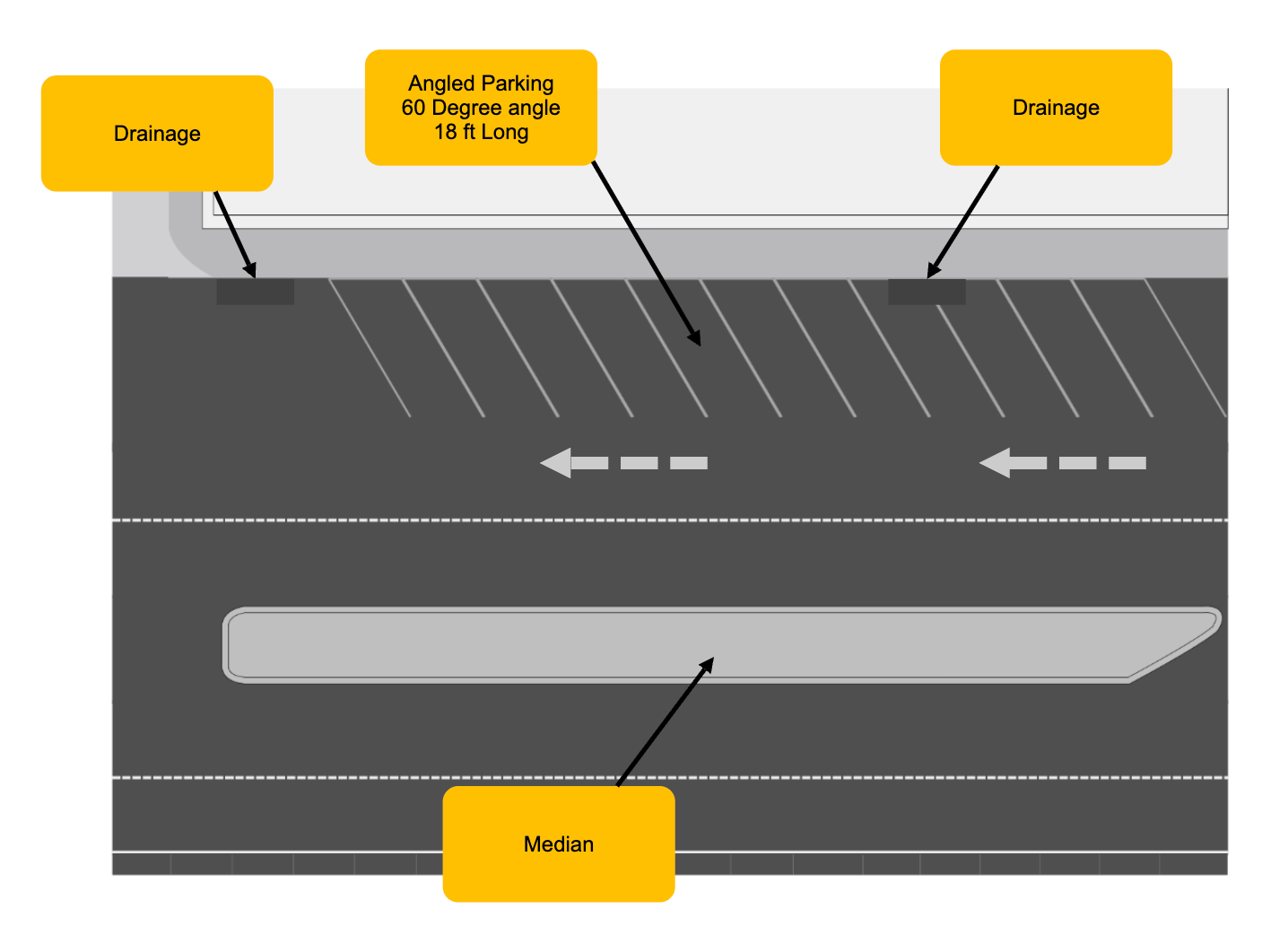

Most parking lot designs have standard dimensions and angles. Perpendicular stalls are usually 9 feet wide and 18 feet deep and require a 24-foot two way aisle to allow for cars to pull in and out. Angled stalls are usually set to 60 degrees and require a narrower 18-foot aisle that is restricted to one way to match the angle of the spots.
Any parking design should consider sloping to deal with water runoffs safely and preventing pooling.
Create curbed islands or medians that can add landscaping for providing shade and also offer safety for pedestrians. Mark crosswalks clearly and add speed bumps if necessary.
You need about 0.75 to 1 acre of land to build a standard parking lot with 100 parking spots.
Each vehicle needs about 300 to 350 square feet when you include the parking stall, driving aisles, and turning areas.
Assuming about 300 to 350 square feet peer car, you can park somewhere between 500 to 700 cars on 5 acres of land depending on how tight or optimized your layout is. Landscaping, handicap spots, and wider aisles will reduce the number of cars you can fit on any land.
