Create Welding Diagram examples like this template called Welding Chart that you can easily edit and customize in minutes.
Text in this Example:
REFERENCES AND SIDES
Attach the reference to the line for top side. If reference agrees with the arrow, it signifies Arrow Side. If not, it signifies Other Side.
Flip the symbol and attach it to the line to signify the opposite side.
Attaching a reference to both sides signifies both sides. Can be staggered to indicate order of completion.
L - P
Number of Spot, Seam, Stud,
Plug, Slot, or Projection Welds
Process, or Other
Tail (May Be Omitted
When Reference is
Depth of Bevel; Size or
Strength of Certain Welds
Groove Weld Size
Groove Angle; Included Angle
of Countersink for Plug Welds
Root Opening; Depth of Filling
for Plug and Slot Welds
Length of Weld Segment
Pitch (Center-to-Center Spacing)
of Weld Segments
Field weld symbol
Arrow connecting reference line to arrow side member of joint or arrow side of joint
Basic weld symbol or derail reference
Elements in this area remain as shown when tail and arrow are reversed
Weld symbols shall be contained within the length of the reference line

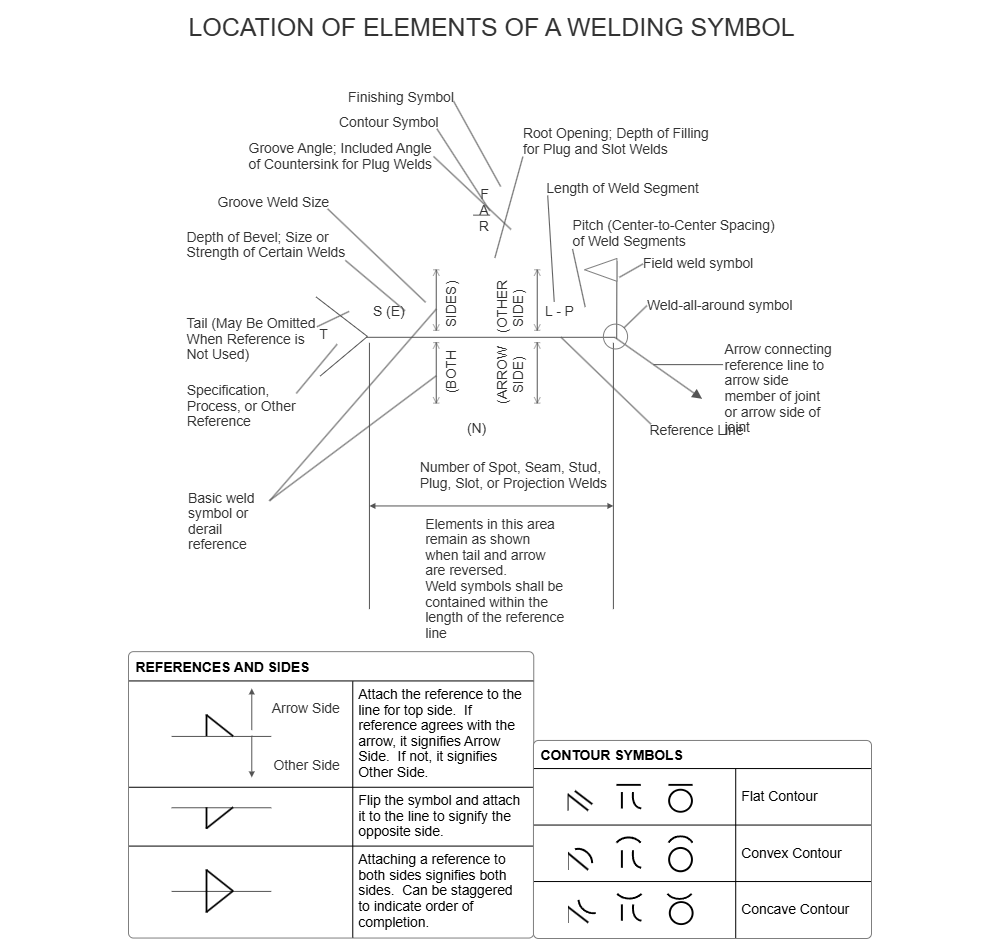

LOCATION OF ELEMENTS OF A WELDING SYMBOL
